huidu asynchronous and dual mode controller

Input:
1. Support 1 Gigabit communication network port for debugging parameters, faster program sending speed;
2. Support 1 HDMI IN input interface, support automatic zooming of synchronous pictures, and support synchronous and asynchronous picture-in-picture functions;
3. Support 1 channel USB2.0 (custom OTG/USB mode), 1 channel USB3.0 communication interface, which can be used for inserting programs and expanding capacity;
4. Supports 2 channels sensor input interface, externally connected to various environmental monitoring sensors.

Output:
1. Standard 2 Gigabit output network ports, directly cascaded HD-R series receiving card control display;
2. The maximum control range is 655,360 pixels, the maximum horizontal (discounted) support is 16384 pixels, and the maximum vertical support is 4096 pixels;
3. 1 channel TRS 3.5mm standard two-channel audio output.

Functions:
1. Standard 2.4GHz Wi-Fi, support mobile phone APP wireless control (support STA mode, in this mode, the device can connect to the nearby Wi-Fi network);
2. Support multi-channel video window playback (support up to 2-channel 4K or 6-channel 1080P or 10-channel 720P or 20-channel 360P);
3. Support synchronous and asynchronous switching playback;

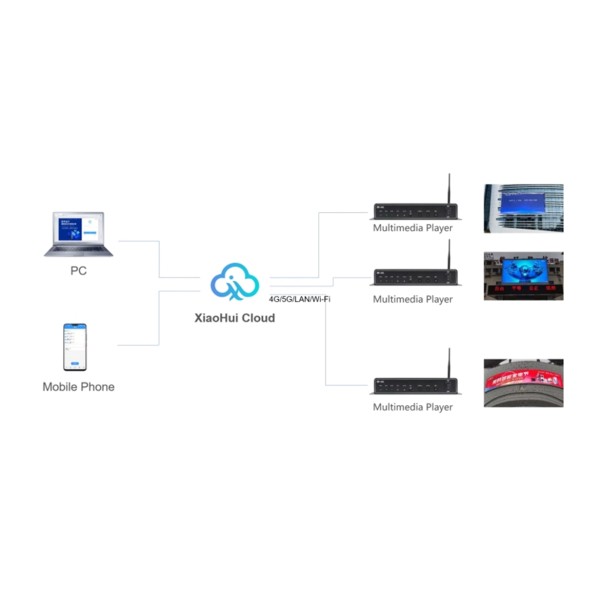

4. Support 4G/5G (optional) access to XiaoHui Cloud platform to realize Internet remote cluster management.

Input:
1. Support 1 Gigabit communication network port for debugging parameters, faster program sending speed;
2. Support 1 HDMI IN input interface, support automatic zooming of synchronous pictures, and support synchronous and asynchronous picture-in-picture functions;
3. Support 1 channel USB2.0 (custom OTG/USB mode), 1 channel USB3.0 communication interface, which can be used for inserting programs and expanding capacity;
4. Supports 2 channels sensor input interface, externally connected to various environmental monitoring sensors.

Output:
1. Standard 2 Gigabit output network ports, directly cascaded HD-R series receiving card control display;
2. The maximum control range is 1.3 million pixels, the maximum horizontal (discounted) support is 16384 pixels, and the maximum vertical support is 4096 pixels;
3. 1 channel TRS 3.5mm standard two-channel audio output.

Functions:
1. Standard 2.4GHz Wi-Fi, support mobile phone APP wireless control (support STA mode, in this mode, the device can connect to the nearby Wi-Fi network);
2. Support multi-channel video window playback (support up to 2-channel 4K or 6-channel 1080P or 10-channel 720P or 20-channel 360P);
3. Support synchronous and asynchronous switching playback;
4. Support 4G/5G (optional) access to XiaoHui Cloud platform to realize Internet remote cluster management.

Input:
1. Support 1 Gigabit communication network port for debugging parameters, faster program sending speed;
2. Support 1 HDMI IN input interface, support automatic zooming of synchronous pictures, and support synchronous and asynchronous picture-in-picture functions;
3. Support 1 channel HDMI LOOP IN input interface, support any resolution synchronous picture, support splicing and cascading;
4. Support 1 channel USB2.0 (custom OTG/USB mode), 1 channel USB3.0 communication interface, which can be used for inserting programs and expanding capacity;
5. Supports 2 channels sensor input interface, externally connected to various environmental monitoring sensors.

Output:
1. Standard 4 Gigabit output network ports, directly cascaded HD-R series receiving card control display;
2. The maximum control range is 2.6 million pixels, the maximum horizontal (discounted) support is 65,536 pixels, and the maximum vertical support is 4096 pixels;
3. 1 channel TRS 3.5mm standard two-channel audio output;
4. 1 channel HDMI signal output, which can be used for data source or screen monitoring of HDMI input interface.

Functions:
1. Standard 2.4GHz and 5GHz Wi-Fi, support mobile phone APP wireless control (support STA mode, in this mode, the device can connect to the nearby Wi-Fi network);
2. Support HDMI splicing, used for LED advertising machine to realize multi-screen splicing playback;
3. Support multi-channel video window playback (support up to 2-channel 4K or 6-channel 1080P or 10-channel 720P or 20-channel 360P);
4. Support synchronous and asynchronous switching playback;
5. Support 4G/5G (optional) access to XiaoHui Cloud platform to realize Internet remote cluster management;
6. Support optional mobile phone, tablet and computer wireless screen casting

Input：1. Support 1 channel 100M communication network port, communicate with the other devices via TCP/UDP.
2. Support 1 channel USB communication interface, which can be used to update programs and expand capacity;
3. Support 1 channel dedicated interface for temprature sensor, 1 channel dedicated interface for GPS sensorand 1 channel universal sensor input interface.

Output：
1. The maximum control range is 650,000 pixels, one card can load 200,000 pixels, and a cascade can load650,000 pixels; the maximum width is 8192 pixels (width > 2048 triggers discount), and the maximum supportis 1920 pixels;
2. Comes standard with 1 channel Gigabit output network port, which can be directly cascaded to the HD-Rseries receiving card to control the display; supports optional RJ45 Gigabit output port on the other side;
3. Onboard 12 sets HUB75E interfaces;
4. 1 channel TRS 3.5mm standard two-channel audio output.

Functions：
1. Comes with 2.4GHz Wi-Fi and supports mobile APP wireless control (supports Wi-Fi-AP mode, Wi-Fi-STAmode, recommended operating distance within 15M);
2. Onboard 1-channel relay can remotely control the power supply;
3. Supports 2-channel video window playback (supports up to 2 channels of 1080P);
4. Support 3 sets of CTRL function, switching detection, detecting 12V level input, controlling bright screen/blackscreen/switching program.
5. Support 4G access to XiaoHui Cloud platform to realize remote management on the Internet (optional);
6. Support UART communication;
7. Supports 2 channel RS-232 or RS-485 communication.
8. Support Chinese and English voice broadcasting function.
